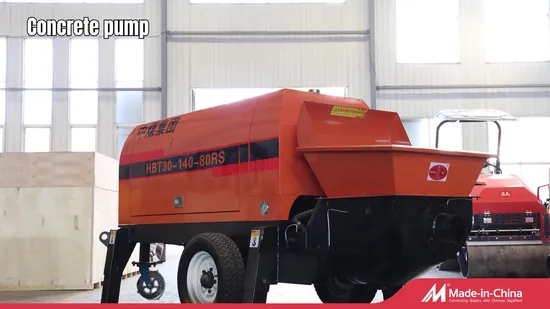

Portable Construction Equipment Mobile Mini Conveying Pumping Diesel Electric Trailer Mounted Transfer Hydraulic Cement Concrete Truck Mixer Pump

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• Our Advantages

Overview

Basic Info.

Model NO.	Concrete Pump
Type	Concrete Pump
Shotcrete Type	Wet
Machining Process	Hydraulic
Structure	Cylinder Type
Productivity	40m3/H
Feeding Height	1400mm
Vibrating Amplitude	1.1mm
Certification	ISO9001: 2000
Condition	New
Color	Yellow
Maximum Theoretical Delivery M³/H	40 Diesel Concrete Pump
Maximum Outlet Pressure MPa	13 Electric Concrete Pump
Motor Power Kw	55 Mini Cement Pump
Feeding Height mm	1200 Small Cement Pump
Host Quality Kg	3400 Mortar Grouting Machine
Most Suitable for Pumping Concrete Slump	15—2
Certificate	CE EPA
Transport Package	Wooden Case or as Required by The Customer
Specification	4300× 1600× 1800mm
Trademark	zhongmei
Origin	China
Production Capacity	1000 Sets Per Month

Packaging & Delivery

Package Size800.00cm * 800.00cm * 800.00cm Package Gross Weight800.000kg

Product Description

Introduction of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.zmwm21

Parameters of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Photos of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump

Product Description Product Parameters

Project	Unit	HBTS25	HBTS40	HBTS60	HBTS80
Maximum theoretical delivery	m³/h	23	40	60	80
Maximum outlet pressure	Mpa	8	13	13	13-16
Maximum theoretical transport distance	m	100/300	200/800	240/1100	240/1100
Motor Power	kw	30	55	90	90-110
Feeding height	mm	1200	1200	1350	1350
Pumpable concrete maximum particle size	mm	≤50	≤40	≤40	≤40
Most suitable for pumping concrete slump	cm	15-23	15-23	15-23	15-23
Duct inner diameter	mm	Φ125	Φ125	Φ125	Φ125
Host weight	Kg	1900	3400	5000	5600
Dimensions: length × width × height	mm	3300×1600 ×1800	4300×1600 ×1800	5500×1800 ×2000	5800×1800 ×2000

Detailed Photos Our Advantages
